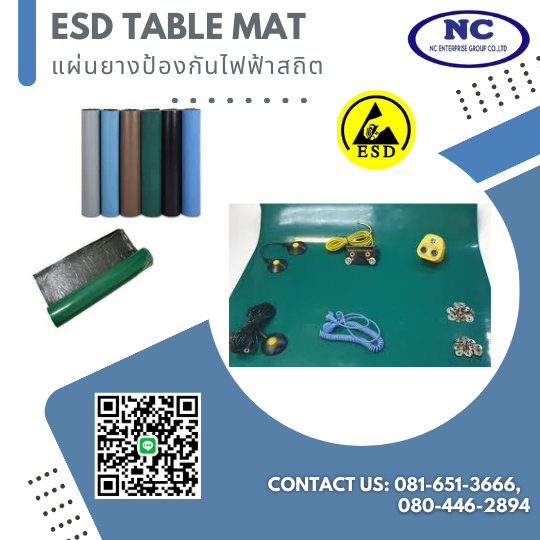

ESD TABLE MATS
ESD TABLE MATS
1.Material:
ESD rubber mat made of anti-static(conductive) and static-
dissipative materials as well as synthetic rubber. The surface layer
is a 0.5mm thick static-dissipative layer. The bottom layer is
1.5/2.5mm conductive layer. Generally, 2mm/3mm thick double-layer structure is used.
2.Description:
1).Anti-static rubber mat or ground mat should be laid out in the
workshops and advanced laboratories for microelectronic industries
such as electronic semi-conduct devices, electronic computers,
electronic communication equipment and integrated circuits etc.
2). When anti-static rubber mat (ground mat) are laid out and
grounded, the working surface will discharge the static electricity
of human bodies so that a near-equipotential can be maintained for
ESEDS tweezers, tools, utensils and instruments, through which
human bodies contact the working table and static sensitive
devices(SSD) are free from broadband interference produced by
static discharging such as triboelectrification etc. In this way,
electrostatic protection is realized
3). To eliminate damages caused by static electricity.
3.Application
Electronics Factory
Pharmaceutical factory
Chemical plant
Clean room
Laboratory
4.Specifications
Thickness 2mm/3mm/4mm/5mm
Width 1m/1.2m/custom made
Length 10m
Color Green/ Grey/Blue/Black
Surface effect Dull/Glossy
Up side surface resistance 10E7-10E9 ohm
Bottom side surface resistance 10E3-10E5 ohm
